Fused 24 Wire Slipring Interface

Estimated reading time: < 1 min

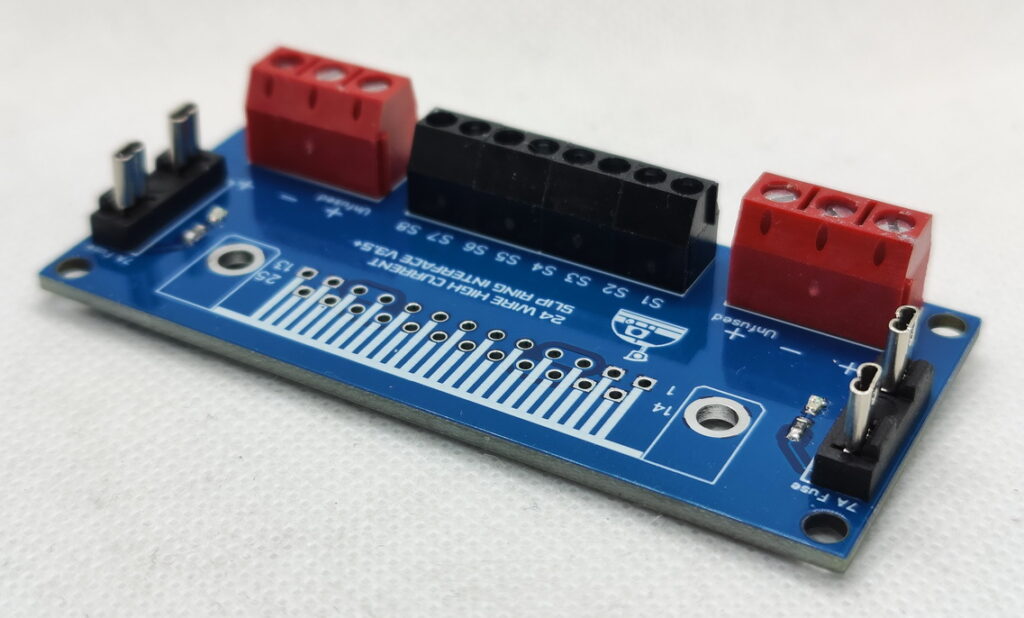

The Printed Droid Fused 24 Wire Slipring Interface was developed by Nitewing inspired by from the R-Series Slipring Interface from Michael Erwin. It is used to connect the Dome Slipring to the electronics so that they easily can be unplugged.

The Differences are:

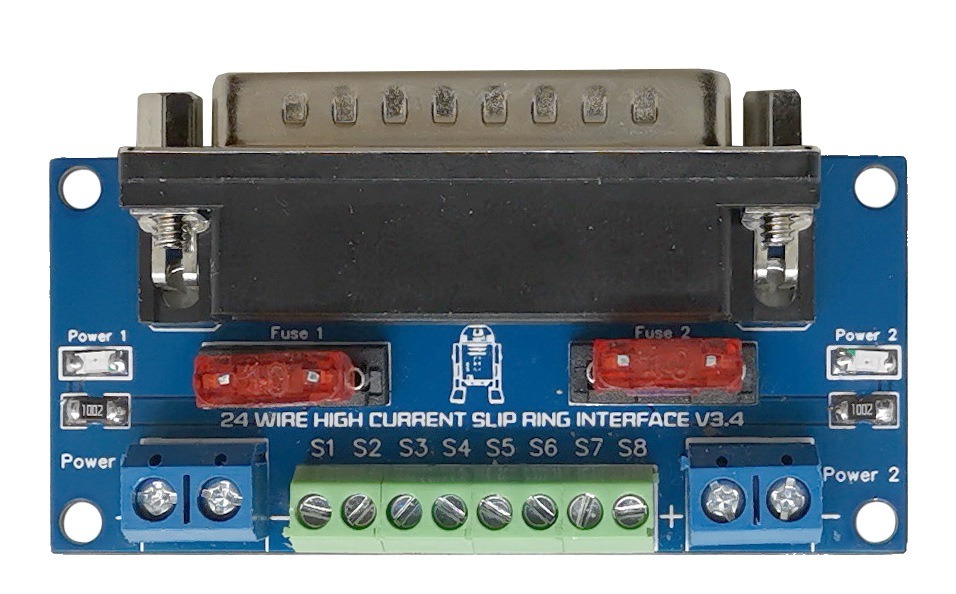

  • 2 leds on each pcb showing the power status
  • all connections are terminal connectors
  • both powerlines are fused on each side
  • possible to run power lines fused or unfused (3p terminal) – Version 2022

Available at shop.printed-droid.com
