Audio Mixer (3 to 1)

Estimated reading time: < 1 min

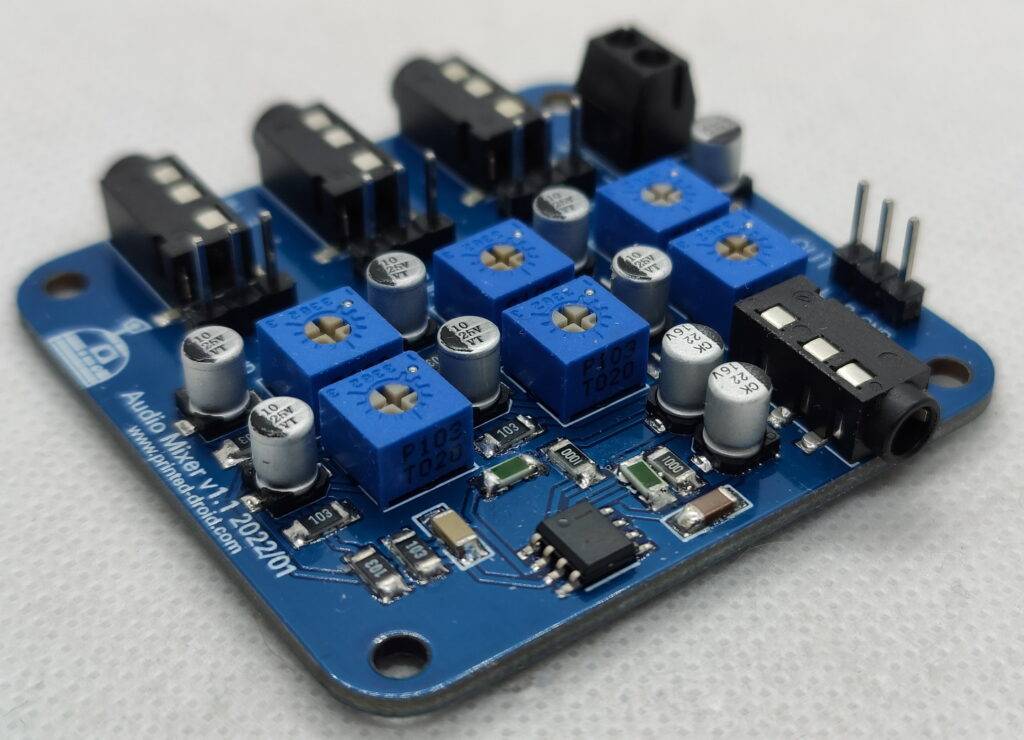

This is an audio mixer intended for droids where up to 3 audio signals need to be combined into a single output.

The amplifier with loudspeaker (or an active loudspeaker) is connected to the output and any audio sources can be fed to the 3 inputs.
Thus, for example, the MP3 trigger can output regular sounds, but at the same time you can play another signal simultaneously via a Bluetooth receiver.

Features:

  • Needs 5V
  • 3x stereo input via headphone jack or pins
  • 1x stereo ouput via headphone jack or pins
  • Six on board trimmer pots allow level adjusting for each channel (intended for infrequent level adjustments)

Available at shop.printed-droid.com
