Mini Shadow Shield

Estimated reading time: < 1 min

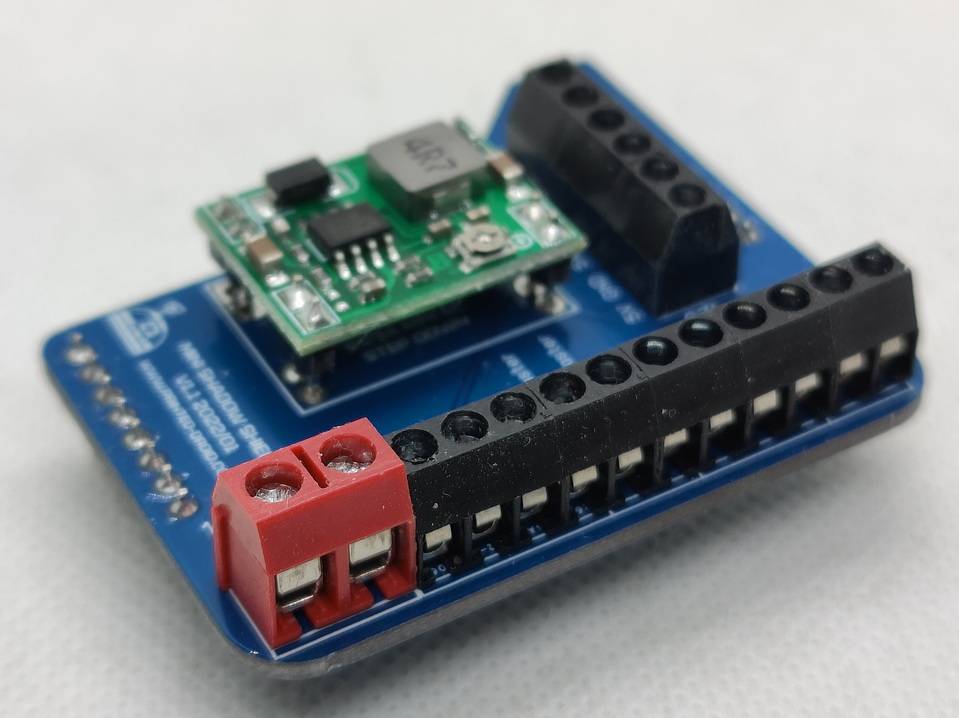

The Mini Shadow Shield is a small Addon Shield for a regular Mega2560.

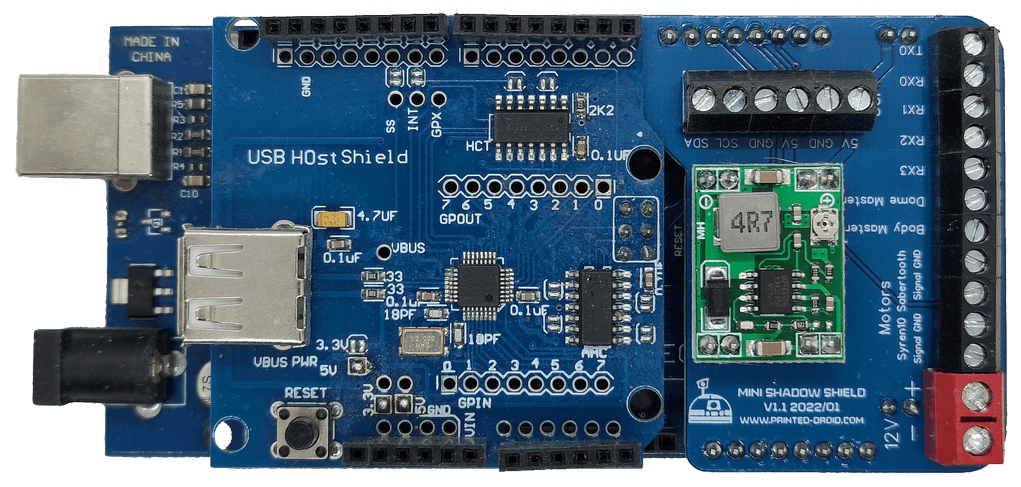

It’s plugged into the rear of the mega and has the needed communivation pins available as screw terminals.
It also has a 5V onboard converter to power the Mega2560 & USB Host shield via 7-12V.

This shield is made for the Shadow MD System

Available at shop.printed-droid.com
